30W (15W*2)DC-5V OUTPUT Monocrystalline silicon solar power panels
30AH Power Grade Ternary Lithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.

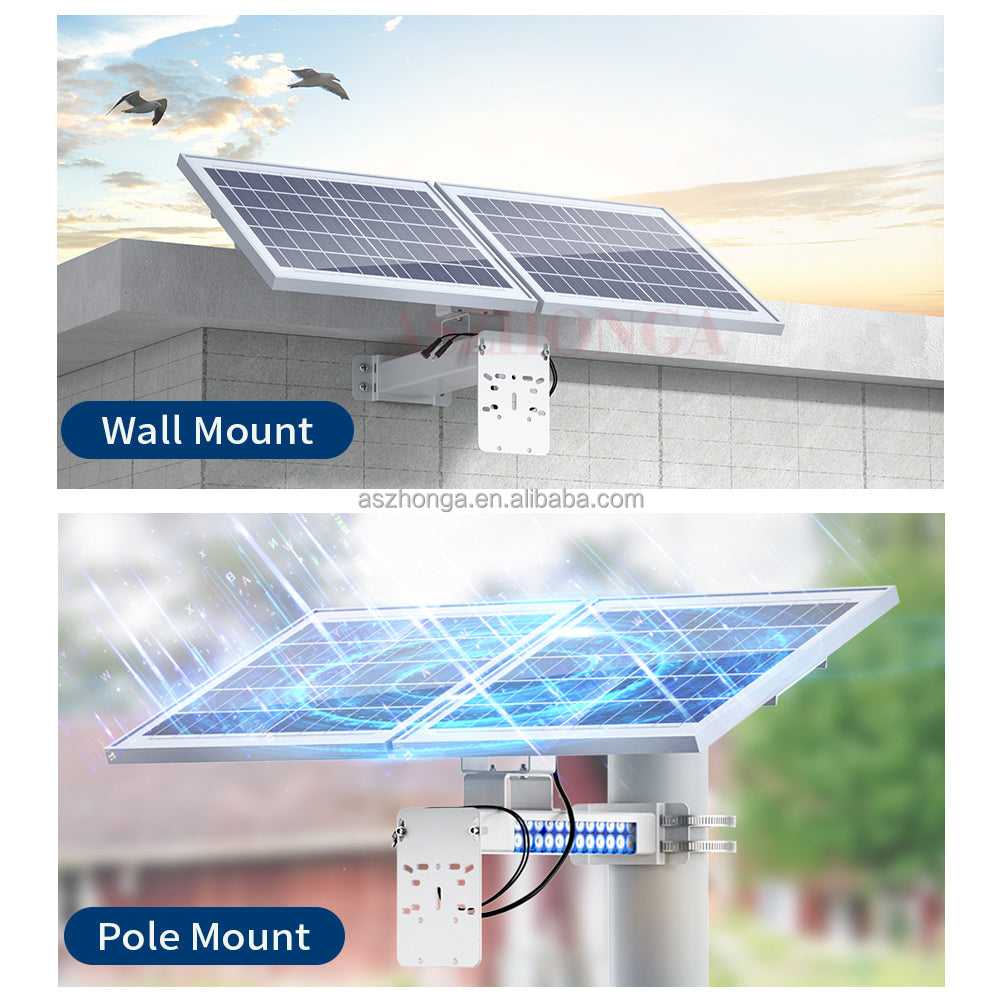

2-in-1 solar angle adjustment and surveillance camera mounting bracket.
Equipped with a 4G outdoor waterproof router for reliable network transmission
Outdoor Use , Waterproof IP66
A&M Global Solar

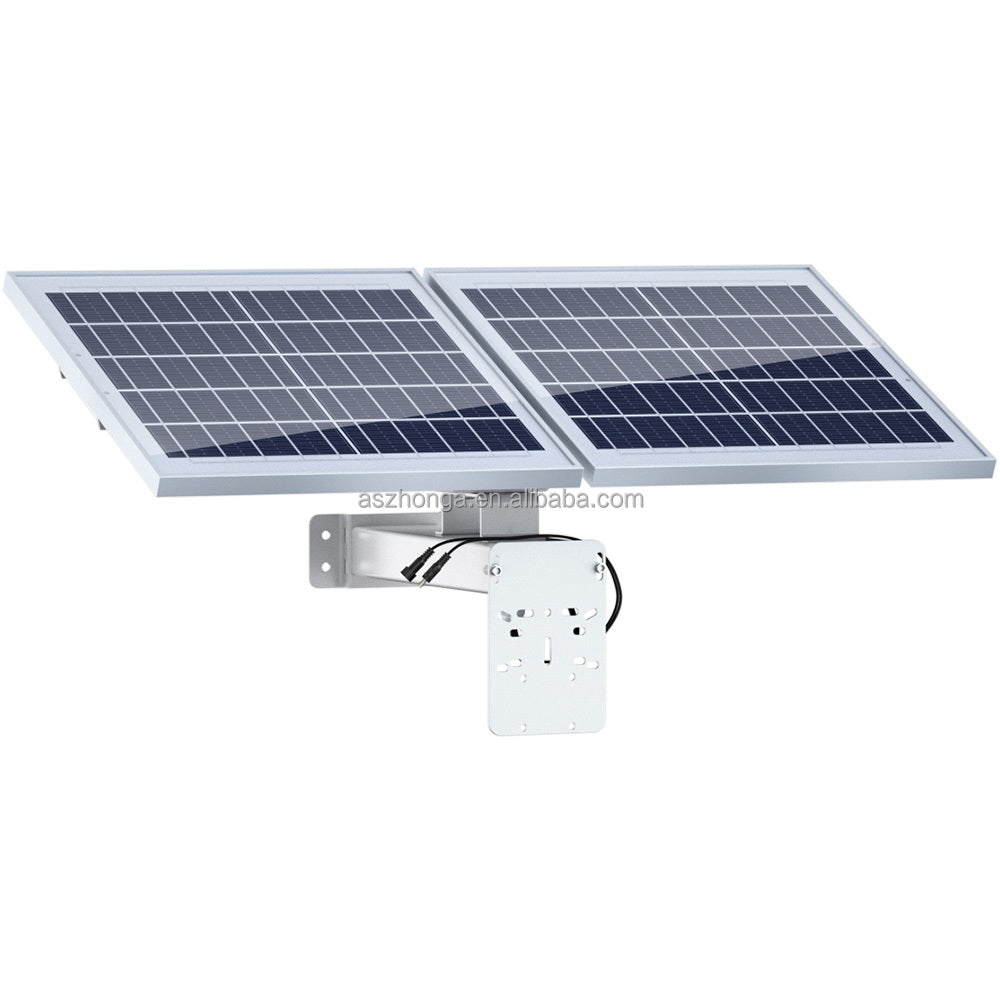

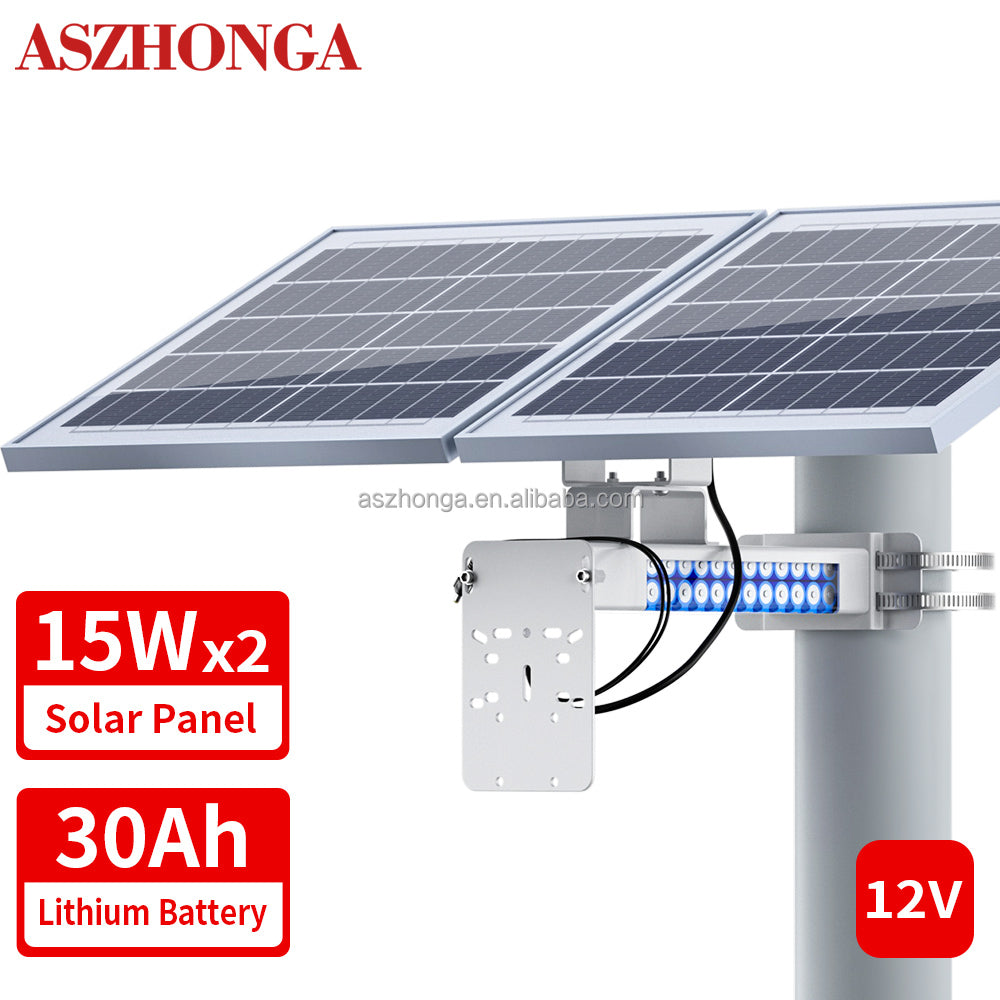

Solar Panel, Off Grid Battery Pack & Mount
Solar Panel, Off Grid Battery Pack & Mount
Regular price
$159.99 USD
Regular price
$0.00 USD
Sale price
$159.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Solar System Off-grid Energy Storage System Lithium Battery for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera DC 12V OUT PUT
Features :

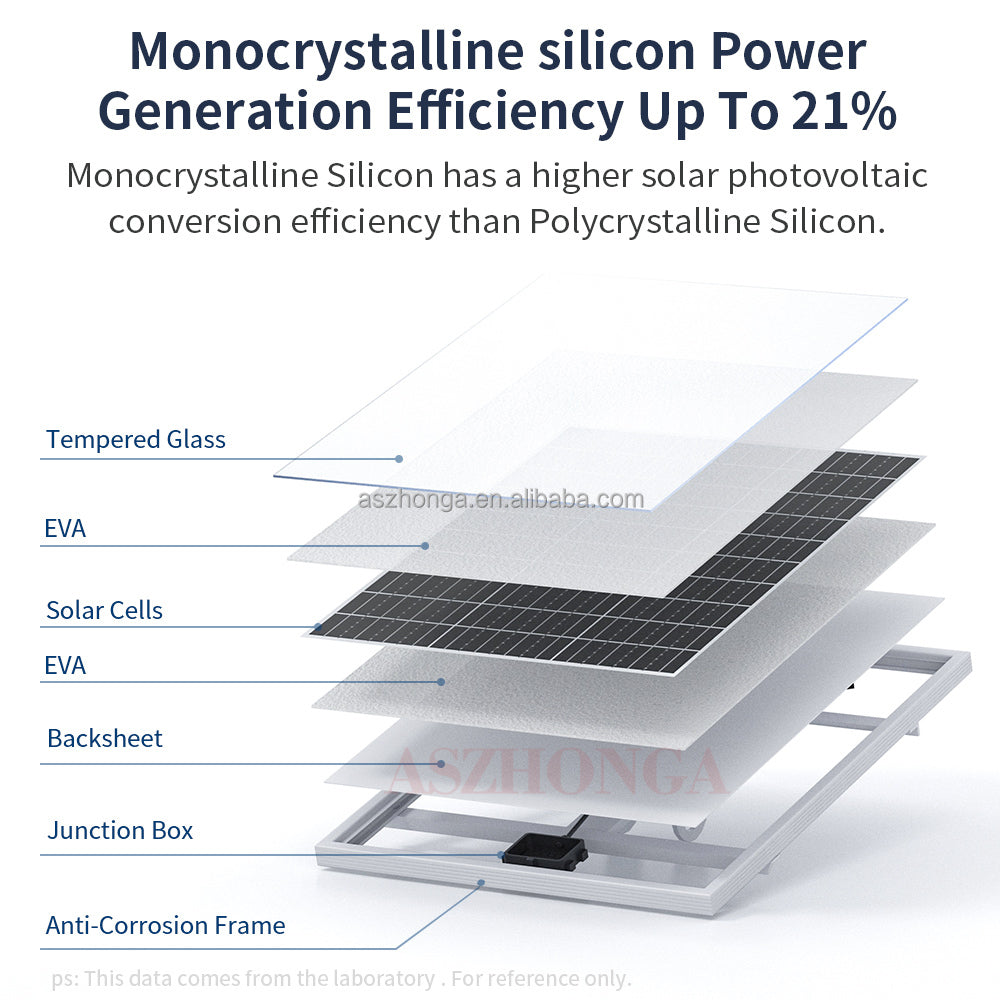

30W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above
data is collected from the laboratory.)
data is collected from the laboratory.)

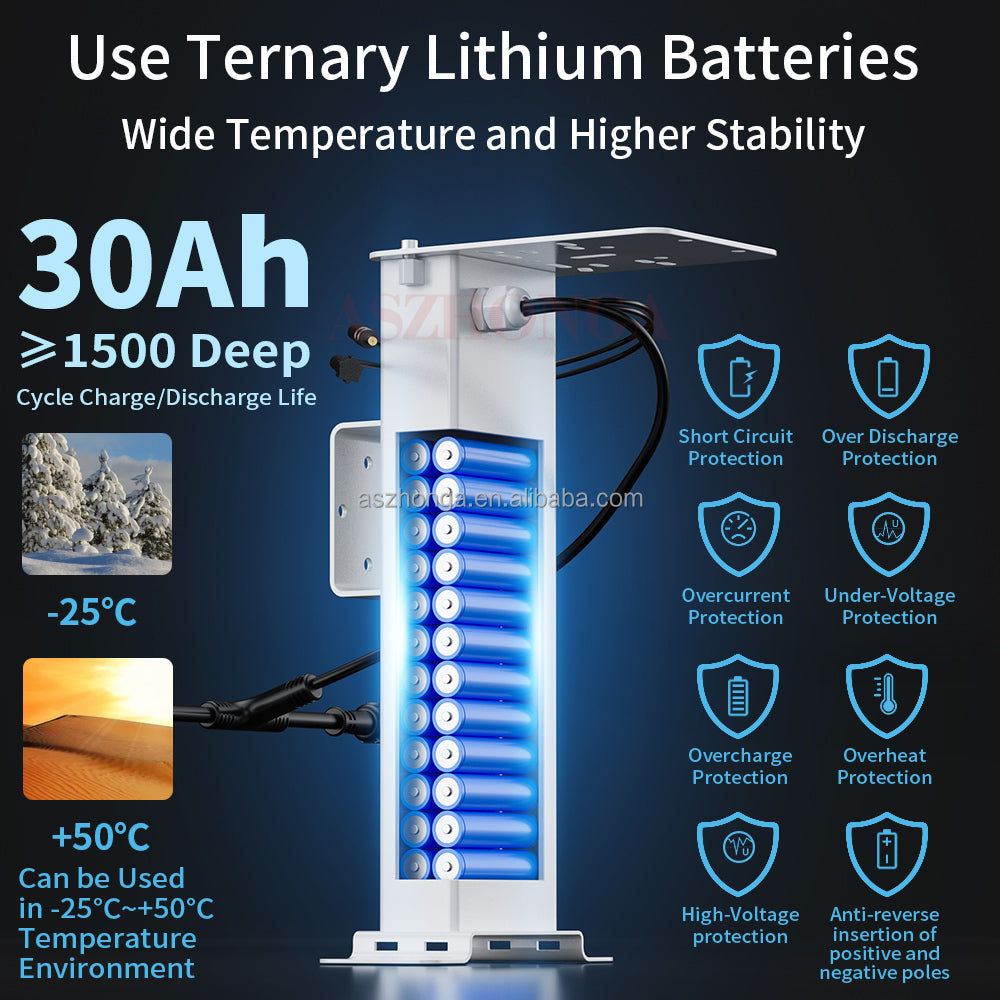

30Ah Trithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
NOTE(The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind)
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
NOTE(The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind)
Size &Product Details:
Package LIST:
2Pcs * 15W Solar panel
1Pcs * 30Ah Ternary Lithium Energy Storage Battery mounting bracket.
2Pcs *Metal Hoop
1Screw Pack
1Pcs * 30Ah Ternary Lithium Energy Storage Battery mounting bracket.
2Pcs *Metal Hoop
1Screw Pack
Specification
|
Model
|
SPYN33S-3030
|
||
|
Solar Panel Cell Process
|
Monocrystalline Silicon Whole cells
|
||
|
Rated Maximum Power(Pmax) [W]
|
30
|
||
|
Open Circuit Voltage(Voc) [V]
|
5.3
|
||
|
Maximum Power Voltage(Vmp) [V]
|
5
|
||
|
Short Circuit Current(Isc) [A]
|
1.93
|
||
|
Maximum Power Current(Imp) [A]
|
1.74
|
||
|
Module Efficiency [%]
|
21.3
|
||
|
Max system voltage [V]
|
1000
|
||
|
Panel Dimension [mm]
|
700*350*15
|
||
|
Power Tolerance
|
0~+3W
|
||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.048%/℃
|
||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.27%/℃
|
||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.35%/℃
|
||
|
Operating Temperature
|
-25℃~70℃
|
||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
||
|
Battery Type
|
Ternary Lithium Batteries
|
||
|
Nominal Capacity [Ah]
|
30
|
||
|
Power Management Controller
|
Built-in PWM
|
||
|
DC IN
|
5V
|
||
|
Solar Power Input
|
DC-5V Aviation Cable Plug
|
||
|
DC OUT
|
12V 5A
|
||
|
Protective Features
|
Overload, reverse connection, over discharge, overcharge, short circuit, backflow prevention, etc.
|
||
|
Operating Temperature
|
-25℃~50℃
|
||
|
Nominal Voltage
|
3.6V
|
||
|
Internal Resistance
|
Full Charged Battery 25℃
|
||
|
Capacity Affected by Temperature (10 hour)
|
40℃(104°F)
|
102%
|
|
|
25℃ (77°F)
|
100%
|
||
|
0℃ (32°F)
|
90%
|
||
|
-15℃ (5°F)
|
70%
|
||
|
Self-Discharge 25℃ Capacity
|
after 3month storage
|
92%
|
|
|
after 6month storage
|
84%
|
||
|
after 12month storage
|
65%
|
||
|
Charge constant Voltage 25℃ (77°F)Float
|
Initial charging current less than 10A Voltage 5.0-5.6V
|
||
|
Operating temperature
|
-20 to +60 degree
|
||
|
Operating humidity
|
10% to 95%
|
||
|
Material&Waterproof Level
|
Side Housing ,Outdoor Use, Waterproof IP66
|
||
|
Package Size(mm)
|
410*205*410
|
||
|
Package Weight(kg)
|
5.8
|
||
